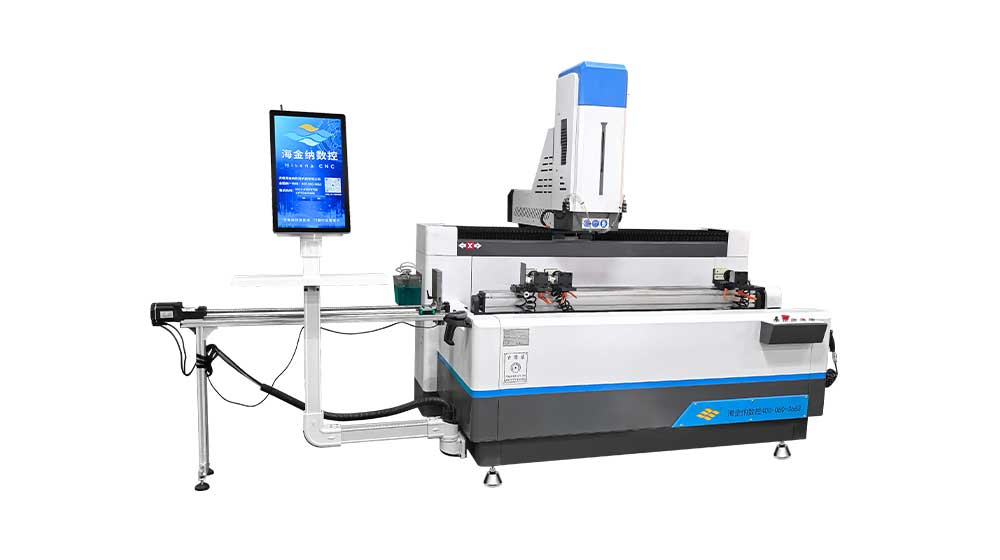

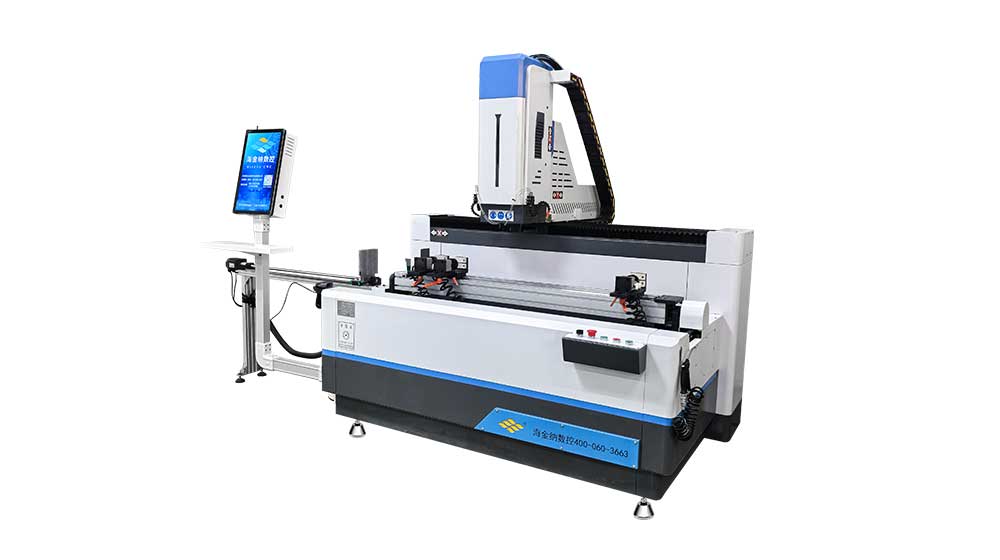

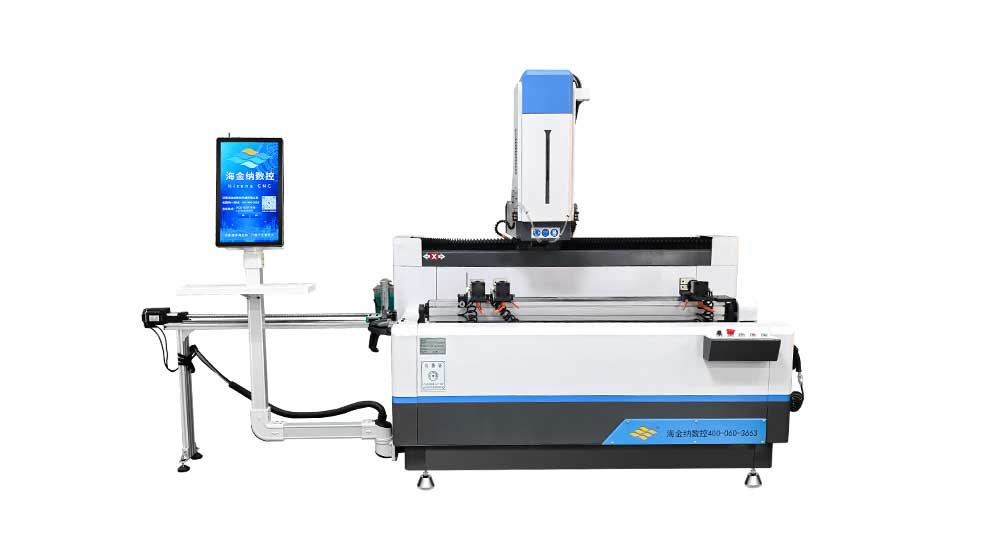

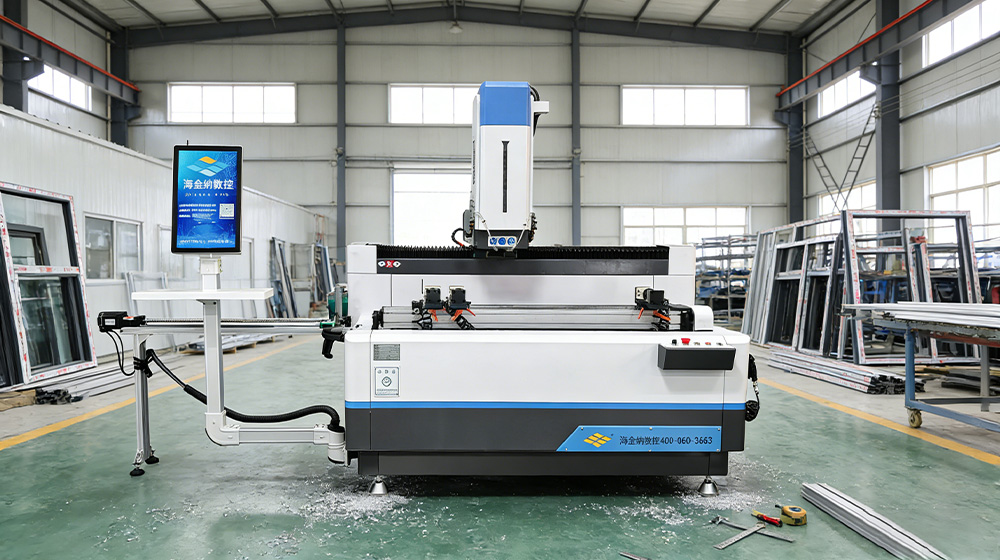

HJN-CNC-1200 CNC Servo Control Copy Milling Machine

4 Axis CNC Copy Router Machine for Versatile processing for aluminum, PVC, UPVC and other light alloys.Suitable for milling, drilling and processing 120mm*120mm aluminum profiles, industrial aluminum and UPVC profiles.The machine supports intelligent connection and QR code data import: scan the QR code for direct processing data input, no programming required. It simplifies operation, cuts setup time, and boosts production stability and efficiency.

Standard Features Technical Parameters Video

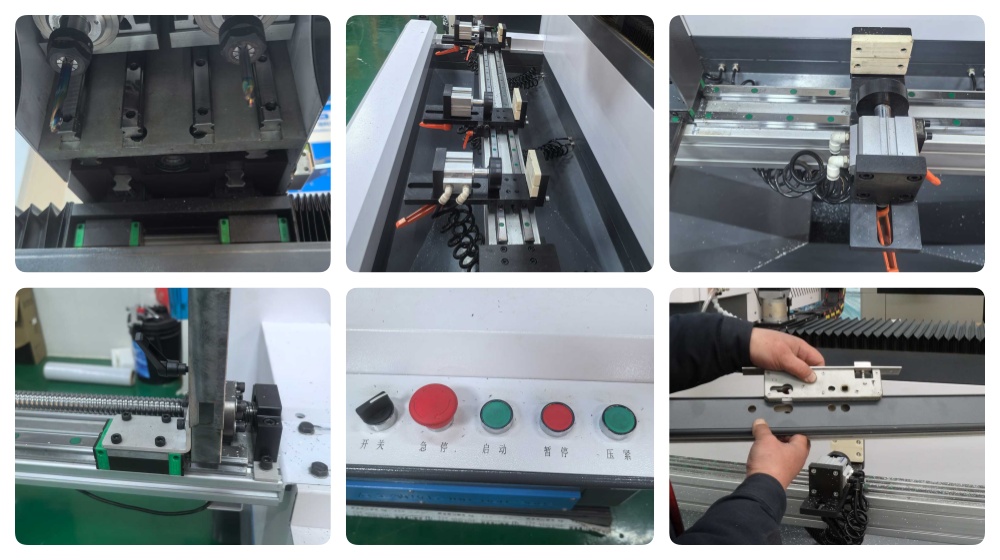

Standard Features

Machine adopts the upper computer combined with professional control system software, friendly man-machine interface, equipment operation is simple and convenient .
suitable for 120mm*120mm aluminum profiles, industrial aluminum and other light alloys, as well as U-PVC profiles milling, drilling and other processing.

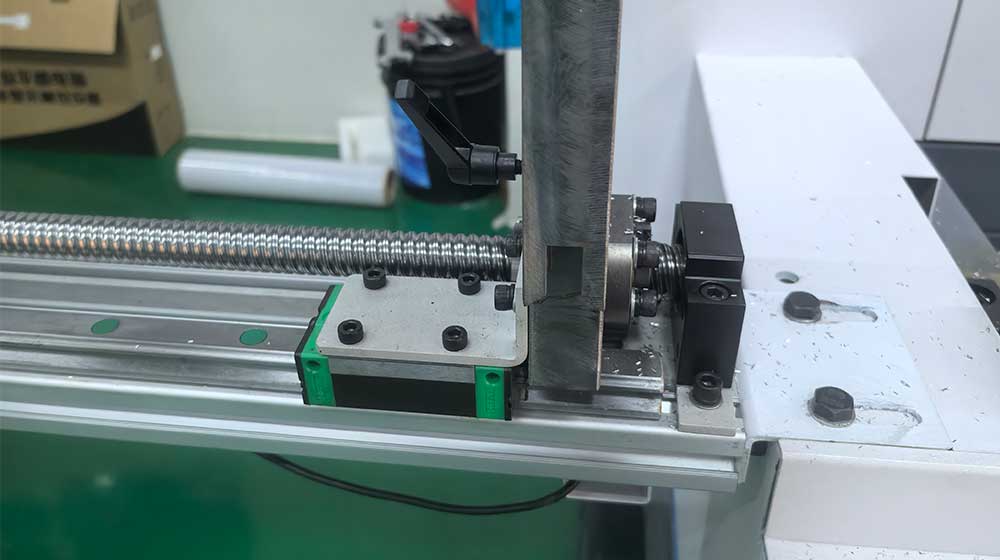

using high-precision linear motion, ball screws, to ensure smooth operation, with high ball screws to ensure smooth operation and high positioning and machining accuracy.

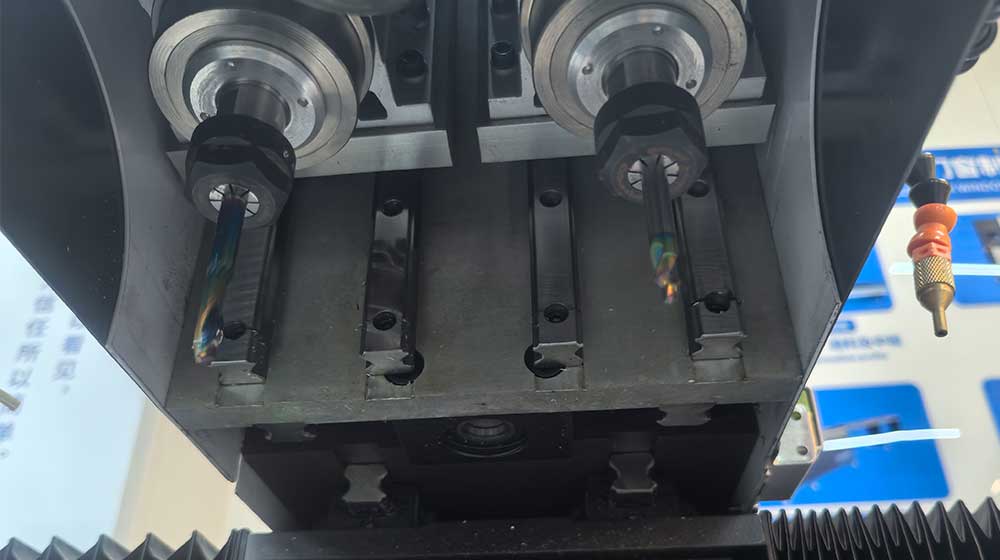

adopting high-quality high speed frequency conversion spindle to ensure the stability of processing, stable rotation, low noise, strong cutting capacity.
With program saving function, easy to be used.

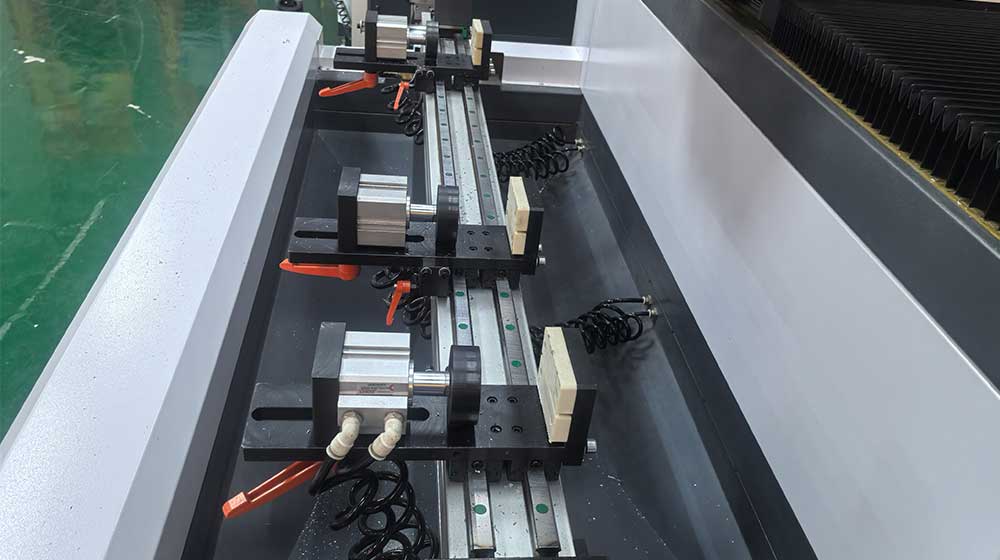

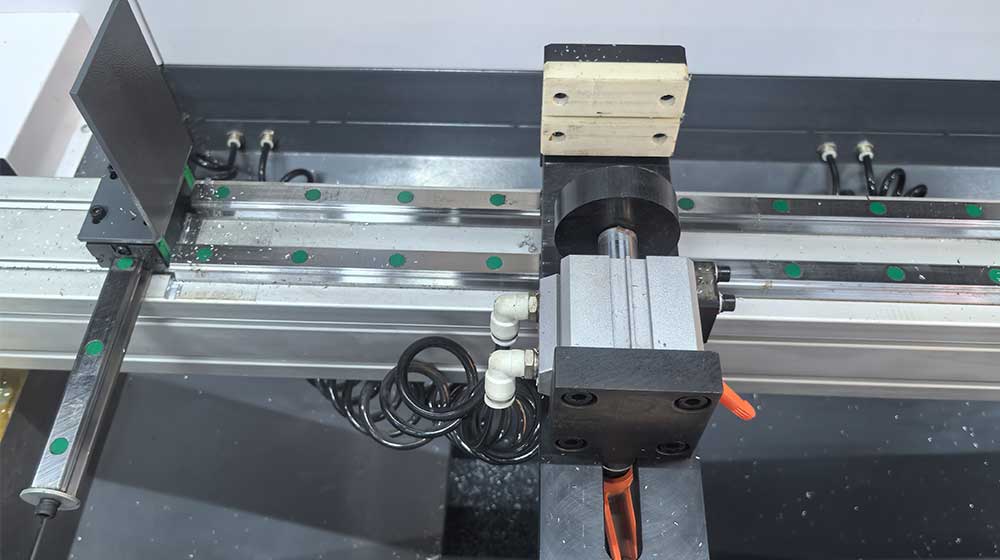

table movement mode can realize internal and external 90 °, horizontal 180 °three-sided automatic flip; workpiece fixture left and right can be moved.

Technical Parameters

Applicable Material	PVC, UPVC, Aluminum
Place of Origin	China
	Shandong
Core Components	motor, PLC
Weight	500kg
Warranty	1 Year
Key Selling Points	High Productivity
Voltage	380V
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Brand Name	Hisena
Dimension(LWH)	210016001900mm
Power Supply	380V 50HZ or ordered
Working Pressure	0.5-0.8MPa
Total Power	6.0KW
Air Consumption	100L/min
Milling Bit Rotary Speed	8000-18000r/min
Power	5.75KW
X Axis Working Range	1200mm
Y Axis Working Range	360mm
Z Axis Working Range	280mm
U Axis Working Range	900
X/Y/Z Axis Speed	0-10m/min

Related Products

QUESTIONS & ANSWERS

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
