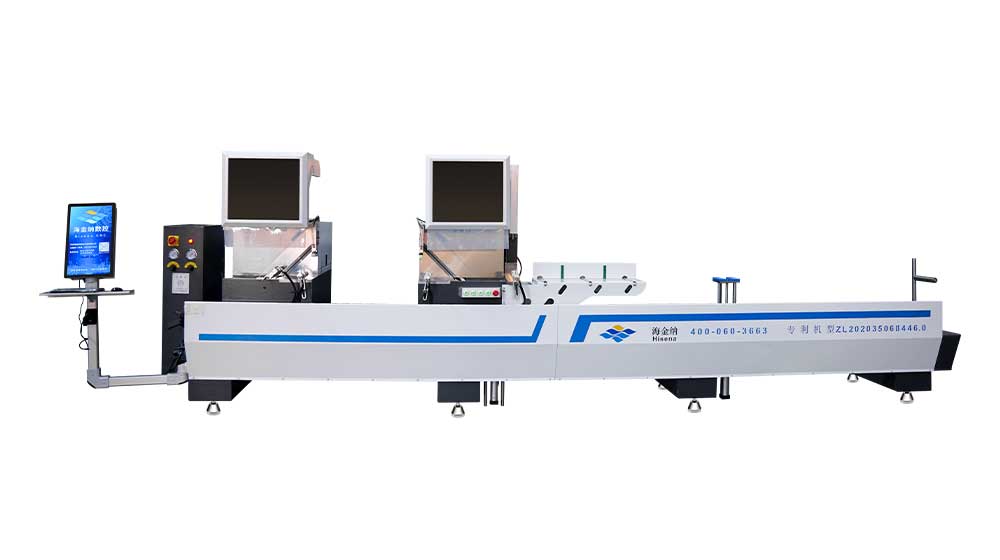

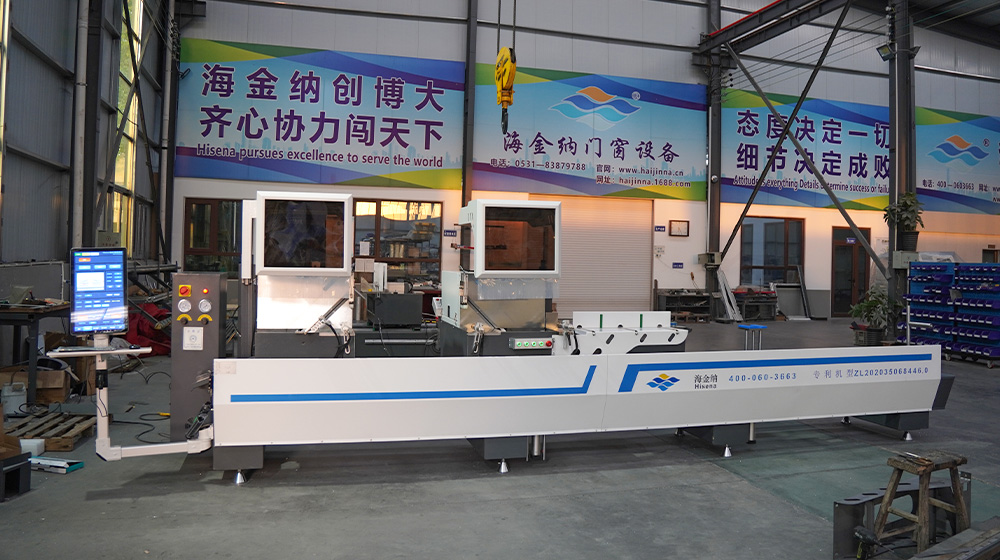

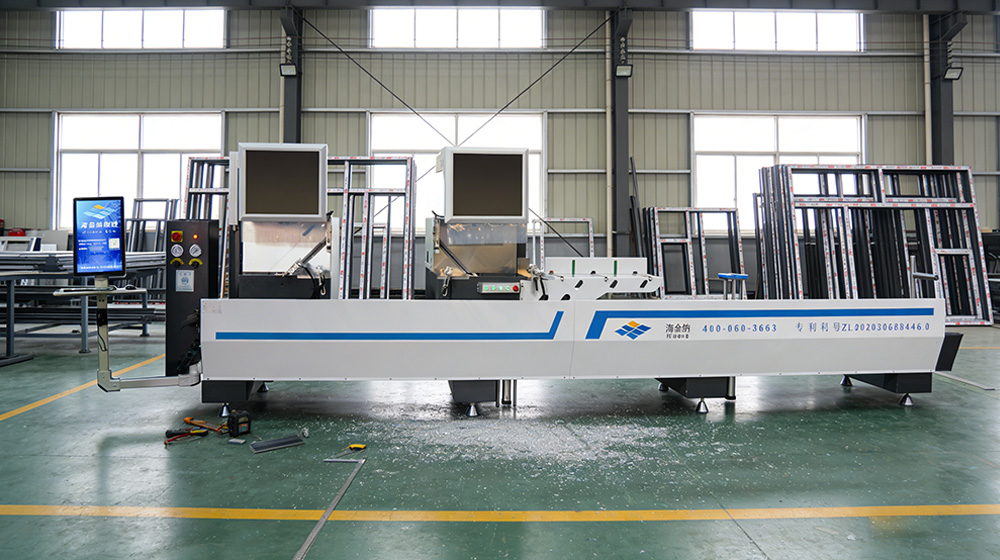

HJN5A-CNC-550×4200 Smart Connection CNC Inner 45 Degree Cutting Machine

Versatile Cutting for All Window Profiles,Casement, Sliding, Tilt & Turn.This machine handles basic to complex thermal break window profiles. Adjustable clamps and supports fit various aluminum extrusion shapes/sizes,Smart & Easy Operation,Double Head Synchronized Cutting, 45° miter accuracy for window corners, no manual miter adjustment is needed, resulting in flawless, tight-sealing frame joints with a professional finish.The machine supports intelligent connection and QR code data import: scan the QR code for direct processing data input, no programming required. It simplifies operation, cuts setup time, and boosts production stability and efficiency.

Standard Features Technical Parameters Video

Standard Features

Suitable for cutting aluminum alloy, thermal break aluminum and curtain wall profiles.
The machine uses carbide saw blades with high linear speed and processing accuracy.
The feeding system uses imported linear guide rails with high precision and good stability.
When the machine tool is working, the two saw heads can cut at the same time or separately.
The equipment can only cut at 45°.
The saw blade moves from back to front, making it safer and more reliable to saw profiles, and the sawing width is larger.
This machine tool can be equipped with a CNC system or a digital display device according to customer needs, which ismore suitable for large-scale, high-precision processing of aluminum-plastic doors and windows and aluminum curtain wall profiles.

Technical Parameters

Model	HJN5A-CNC-550×4200	Cutting angle	45 degree
Power supply	3P 380V/50Hz	Repeat locating length	≤0.02mm
Input power	6.75kw	Angle cutting tolerance	±5′
Air pressure	0.5-0.8 M pa	Plane of cutting surface	≤0.10
Air consumption	200L /min	Cutting surface roughness	Ra12.5um
Motor Rotary Speed	3000r/min	PLC	QINGLAN/DELTA
Max/min Cutting length	300-7000mm	Net weight	2000Kg
Saw blade dimension:	Ø550Ø304.4mm*120T	Size	590013701620mm

Related Products

QUESTIONS & ANSWERS

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
