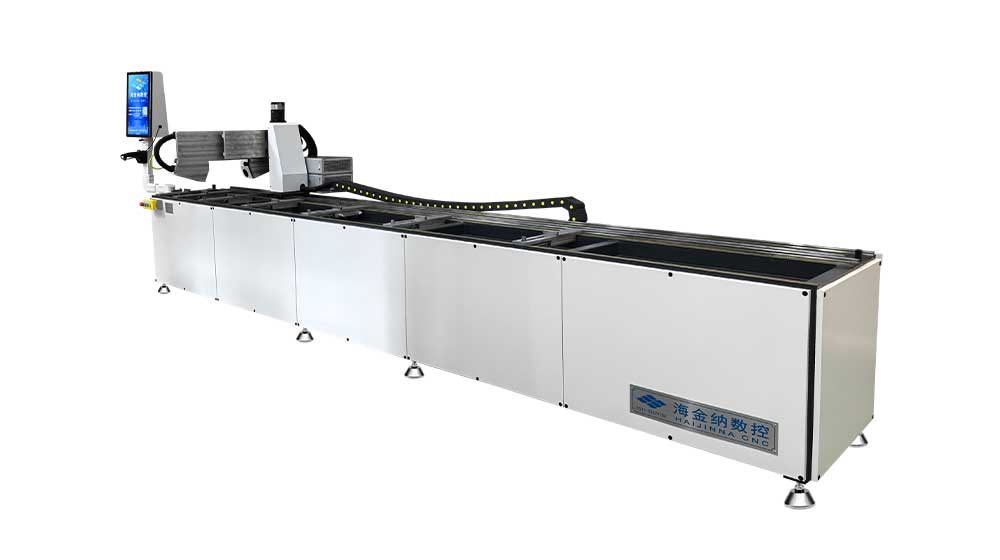

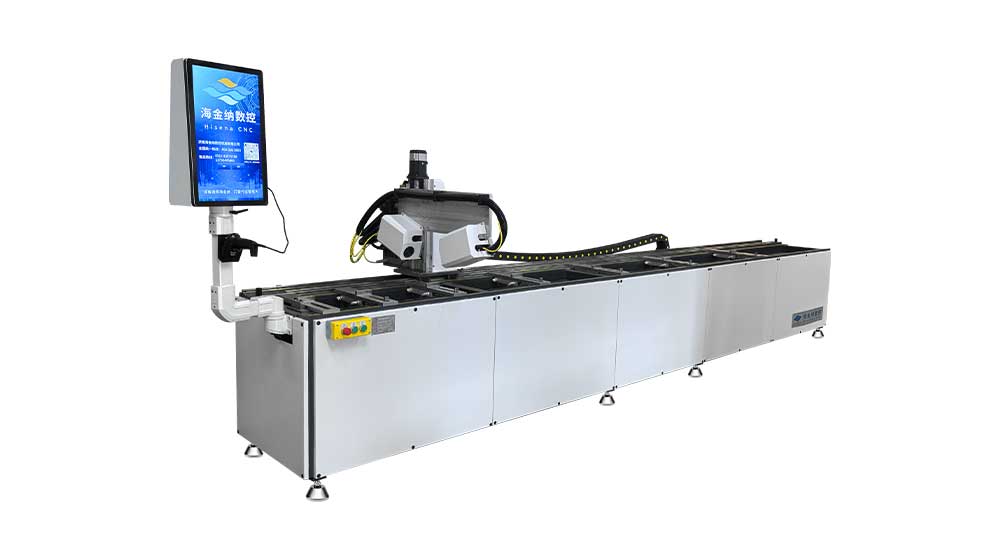

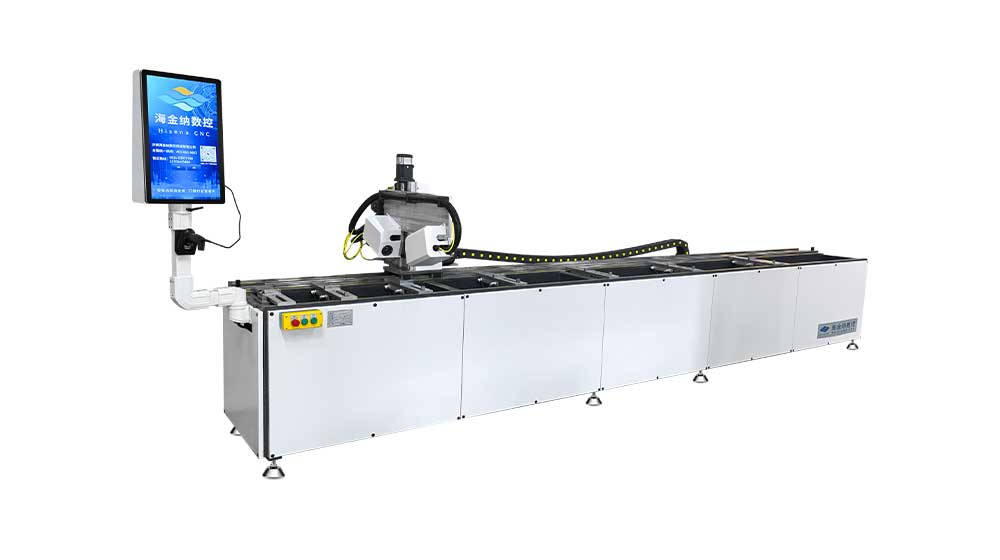

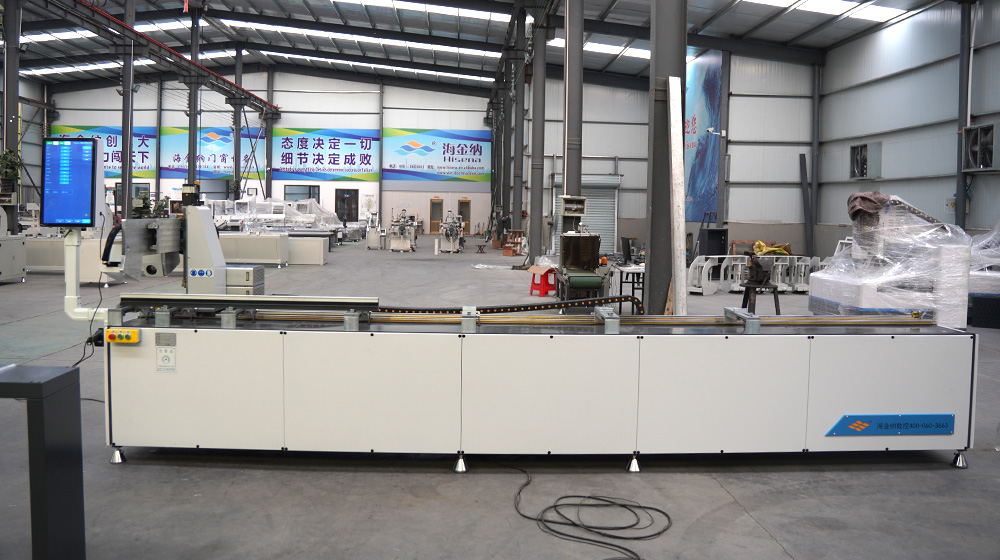

HJN-CNC-4500 Smart Connection CNC Laser Marking Machine

This machine is suitable for marking on process positions such as the water channel and mullion of aluminum alloy profiles.It adopts high-precision linear motion guides, ball screws, gear and rack drives, dual lasers, and 3-axis servo control, ensuring stable operation and high positioning and processing accuracy.

Standard Features Technical Parameters Video

Standard Features

Machine operation is simple and convenient
Applicable to the marking of aluminum profile frame profile water gloves position, mullion position and other process positions

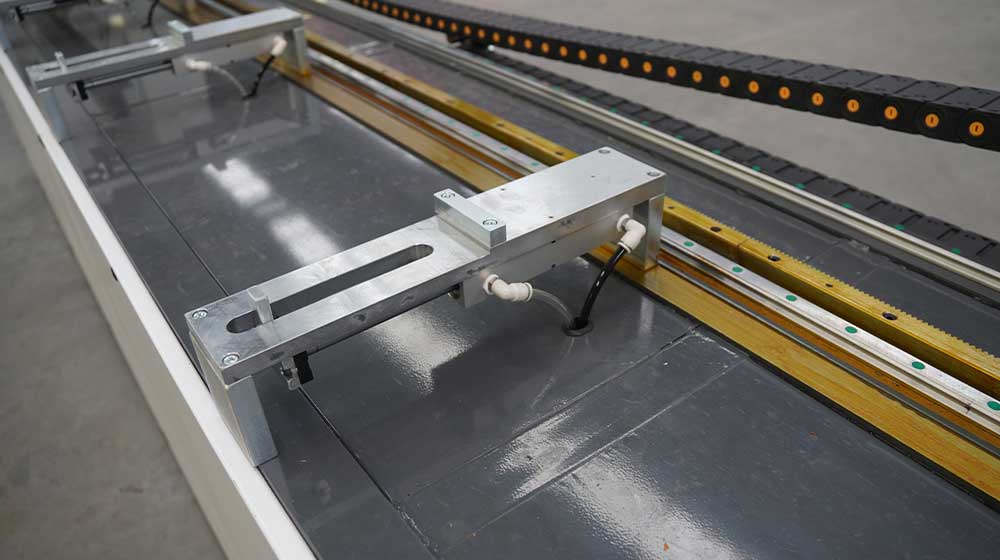

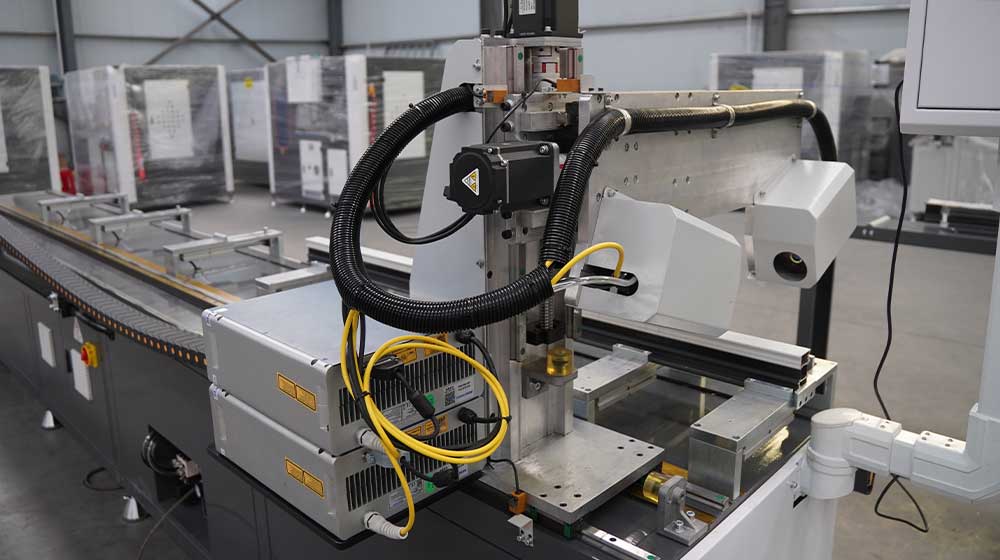

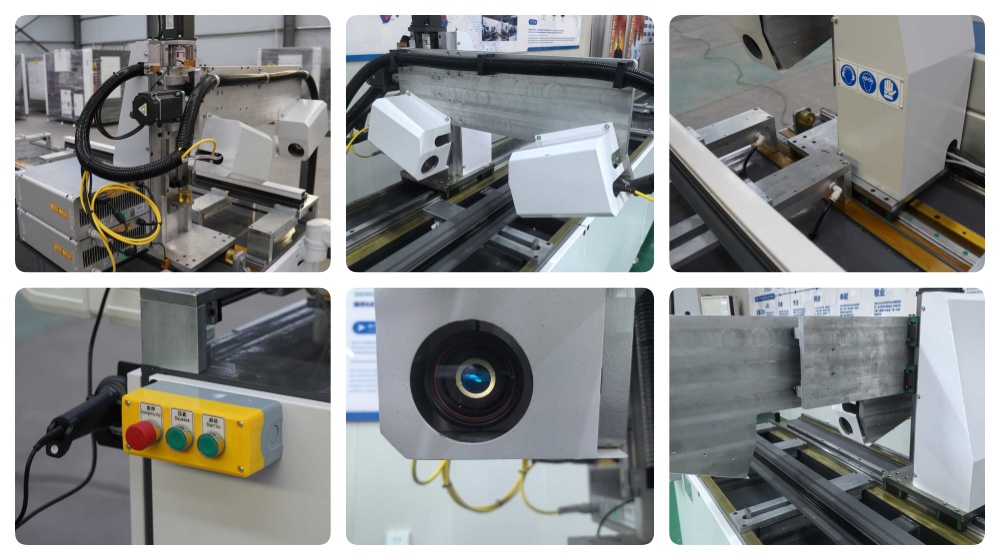

Using high-precision linear motion unit, ball screw, rack and pinion, double laser, 3-axis servo, running smoothly, with high positioning and processing accuracy.

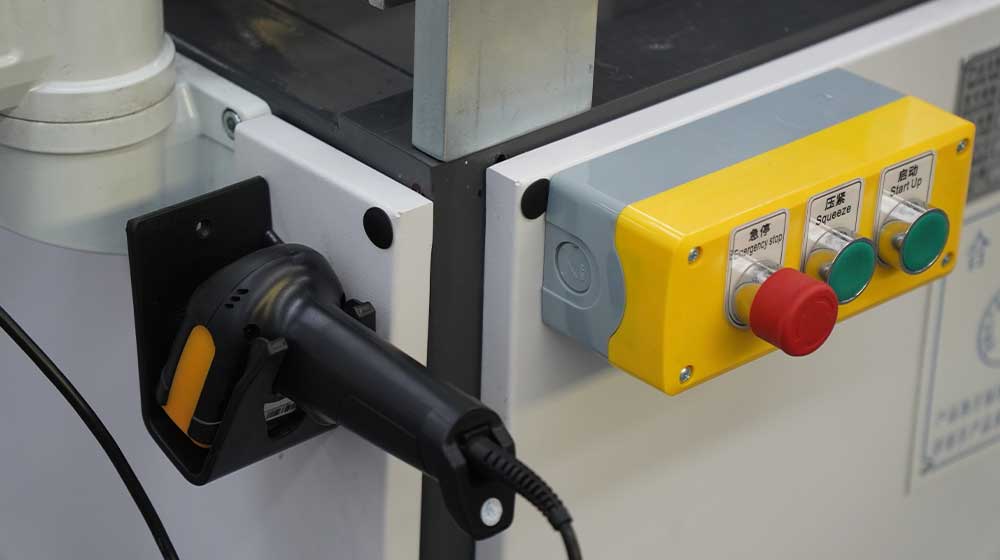

Industrial control 21.5 inch touch screen, scanning code input task list, wireless networking, cloud generated profile
processing program, convenient on-line Simple operation, plus all CNC intelligent completion, without human intervention.

Technical Parameters

Power	0.8KW
Applicable Material	Aluminum
Place of Origin	China
	Shandong
Core Components	Bearing, motor, PLC
Weight	400kg
Warranty	1 Year
Key Selling Points	Easy to Operate
Voltage	380V
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Brand Name	Hisena
Dimension(LWH)	520012001860mm
Power supply	380V, 50HZ or customized
Working pressure	0.5-0.8MPa

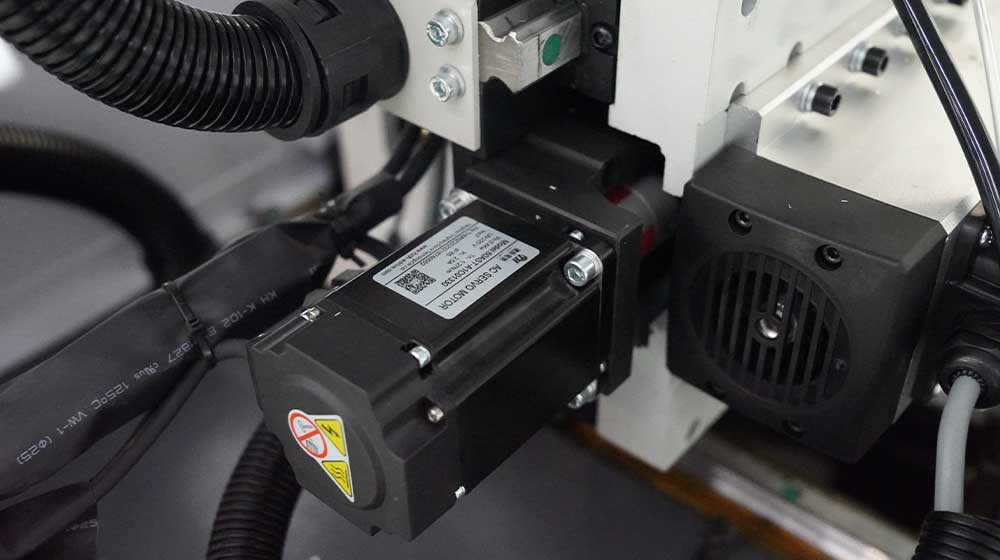

Servo Power	750W*3

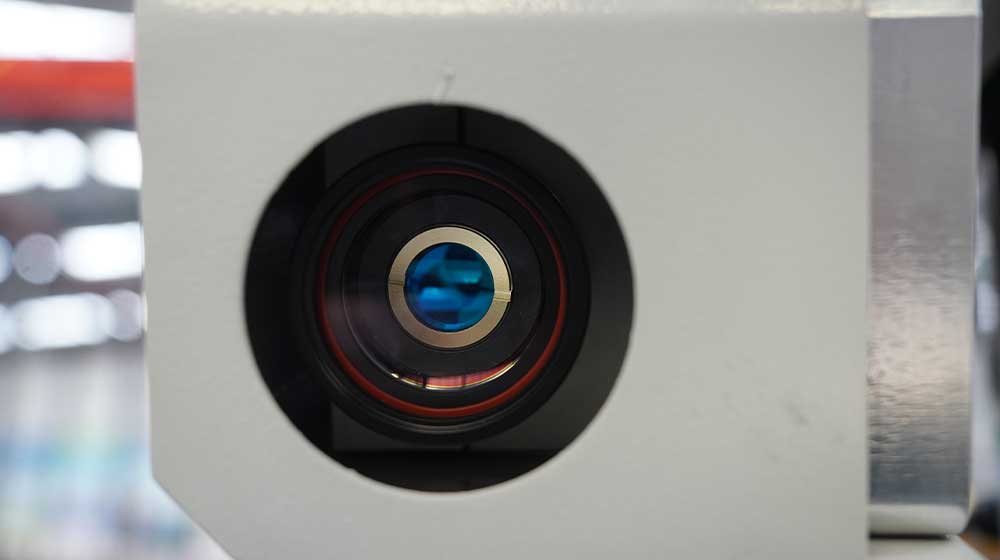

Laser Power	20W*2
Processing Profile Height/Width	150*150mm
X Axis Working Range	4500mm
Z Axis Working Range	150mm
Y Axis Working Range	150mm
Dimension	520012001860mm

Related Products

QUESTIONS & ANSWERS

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
