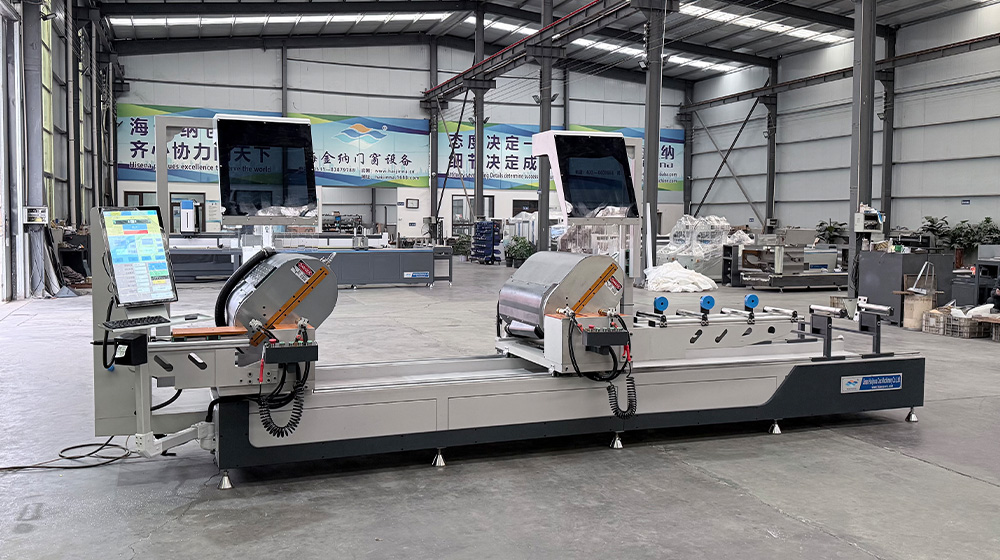

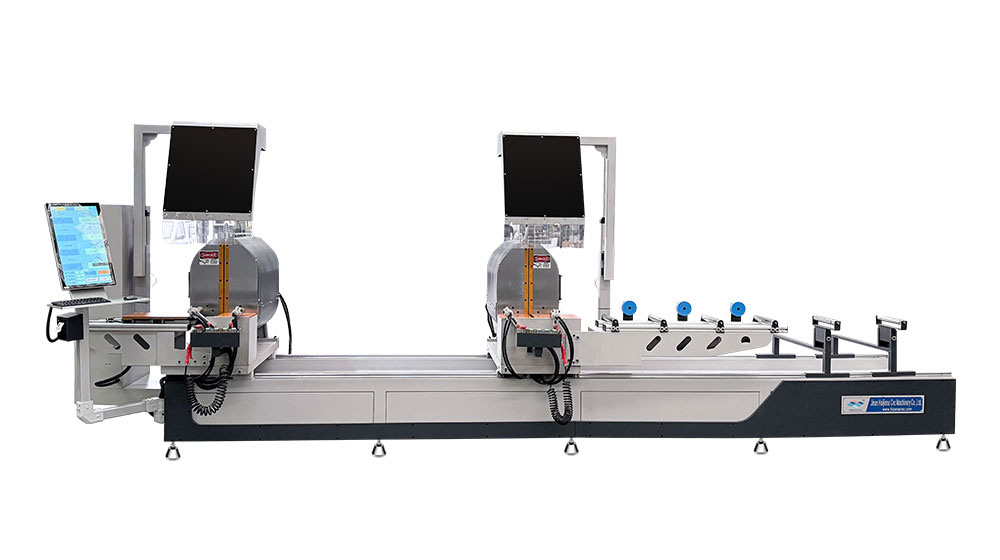

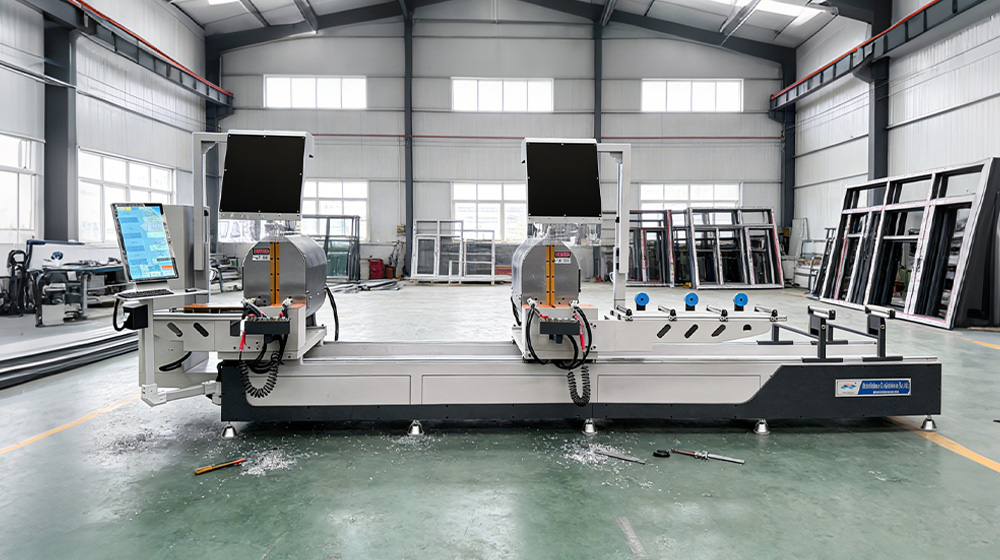

LRZ2-CNC-550-2500 CNC Dual-Headed Miter Saw with Arbitrary Cutting Angles

The LRZ2-CNC-550-2500 Arbitrary Angle CNC Double-Headed Cutting Saw is primarily used for processing and cutting aluminum profiles, performing arbitrary angle cutting on components such as curved anti-collision beams for new energy vehicles, and addressing various irregular cutting positions that require arbitrary angles.

Standard Features Technical Parameters Video

Standard Features

Simple operation, reliable performance, advanced technology, and easy maintenance.

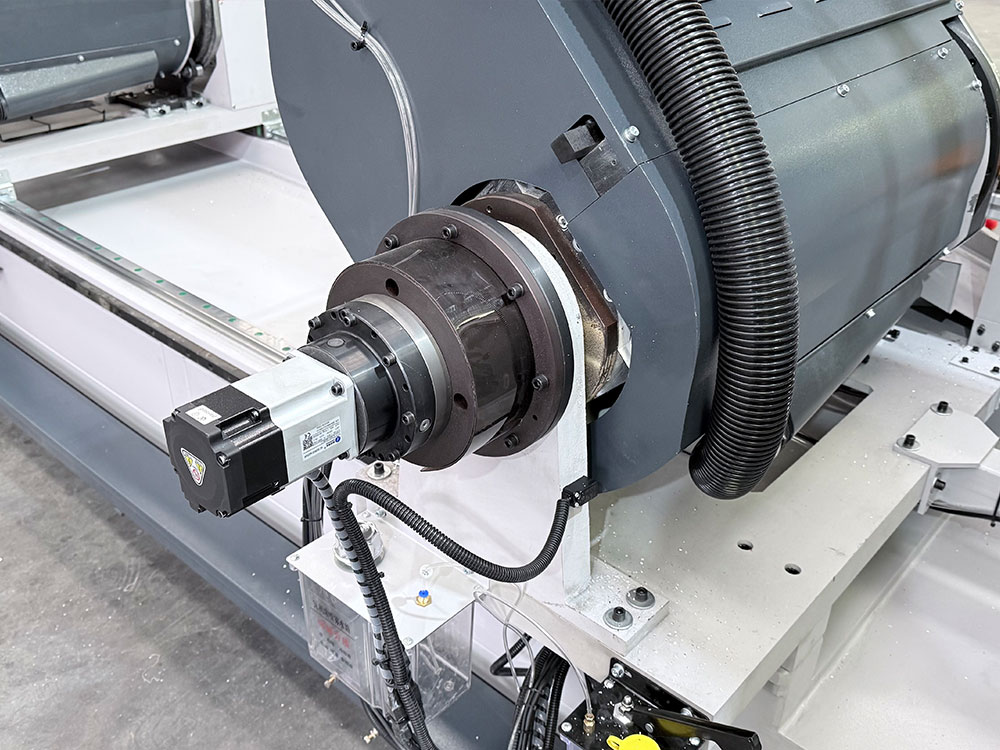

Two servo motors (2*0.75kW) drive the high-precision lead screw to feed the saw blade, ensuring fast cutting speed, high efficiency, and superior machining accuracy.

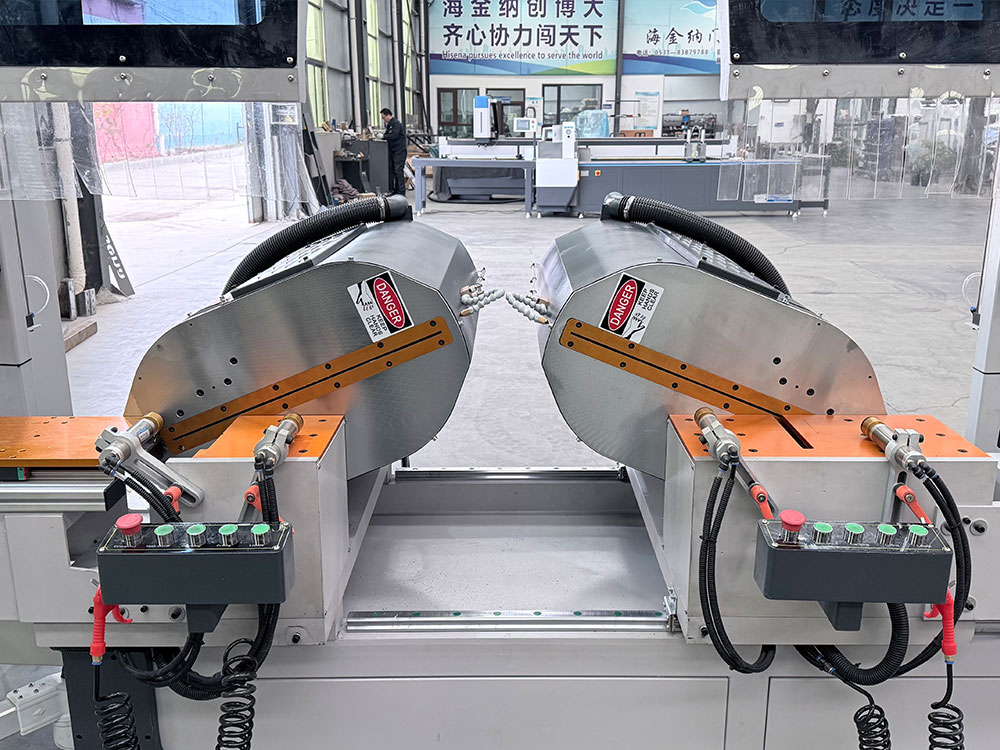

It can also be used for non-ferrous metal processing. Its two cutting heads can work independently or simultaneously, allowing for cutting to the required length and bevel angle in a single operation.
Suitable for cutting various special-shaped aluminum alloy profiles and sliding door materials, as well as for sectioning aluminum windows, doors, and curtain wall profiles.
Maximum cutting dimensions: 410mm at 90°, 210mm at 22.5°, and 290mm at 45°. The maximum cutting width for all three angles is 170mm.

Technical Parameters

Power Supply	380V 50Hz	Input Power	9.5kW
Working Air Pressure	0.5-0.5MPa	Saw Blade Speed	3000r/min
Saw Blade Specification	D=550mm d=30mm	Cutting Angle	-22.5°~22.5°
Cutting Roughness	Ra12.5μm	Overall Dimensions	850019501900mm
Cutting Width	170mm	Cutting Height	90°: 410mm / 45°: 290mm / 22.5°: 210mm

Related Products

QUESTIONS & ANSWERS

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
